The Farey sequence is a fascinating sequence of fractions that divides the interval between 0/1 and 1/1 into smaller and smaller parts. To find the Farey fraction a[i] / b[i], you simply find the mediant of the Farey fractions on either side:
• a[i] / b[i] = (a[i-1] + a[i+1]) / (b[i-1] + b[i+1])
Then, if necessary, you reduce the numerator and denominator to their simplest possible terms. So the sequence starts like this:
• 0/1, 1/1
To create the next stage, find the mediant of the two fractions above: (0+1) / (1+1) = 1/2
• 0/1, 1/2, 1/1
For the next stage, there are two mediants to find: (0+1) / (1+2) = 1/3, (1+1) / (2+3) = 2/3
• 0/1, 1/3, 1/2, 2/3, 1/1
Note that 1/2 is the mediant of 1/3 and 2/3, that is, 1/2 = (1+2) / (3+3) = 3/6 = 1/2. The next stage is this:
• 0/1, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 1/1
Now 1/2 is the mediant of 2/5 and 3/5, that is, 1/2 = (2+3) / (5+5) = 5/10 = 1/2. Further stages go like this:
• 0/1, 1/5, 1/4, 2/7, 1/3, 3/8, 2/5, 3/7, 1/2, 4/7, 3/5, 5/8, 2/3, 5/7, 3/4, 4/5, 1/1
• 0/1, 1/6, 1/5, 2/9, 1/4, 3/11, 2/7, 3/10, 1/3, 4/11, 3/8, 5/13, 2/5, 5/12, 3/7, 4/9, 1/2, 5/9, 4/7, 7/12, 3/5, 8/13, 5/8, 7/11, 2/3, 7/10, 5/7, 8/11, 3/4, 7/9, 4/5, 5/6, 1/1
• 0/1, 1/7, 1/6, 2/11, 1/5, 3/14, 2/9, 3/13, 1/4, 4/15, 3/11, 5/18, 2/7, 5/17, 3/10, 4/13, 1/3, 5/14, 4/11, 7/19, 3/8, 8/21, 5/13, 7/18, 2/5, 7/17, 5/12, 8/19, 3/7, 7/16, 4/9, 5/11, 1/2, 6/11, 5/9, 9/16, 4/7, 11/19, 7/12, 10/17, 3/5, 11/18, 8/13, 13/21, 5/8, 12/19, 7/11, 9/14, 2/3, 9/13, 7/10, 12/17, 5/7, 13/18, 8/11, 11/15, 3/4, 10/13, 7/9, 11/14, 4/5, 9/11, 5/6, 6/7, 1/1
The Farey sequence is actually a fractal, as you can see more easily when it’s represented as an image:
Farey fractal stage #1, representing 0/1, 1/2, 1/1

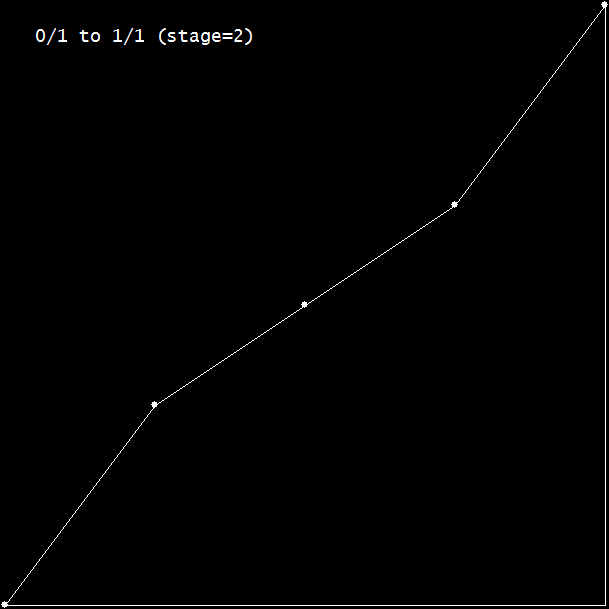

Farey fractal stage #2, representing 0/1, 1/3, 1/2, 2/3, 1/1

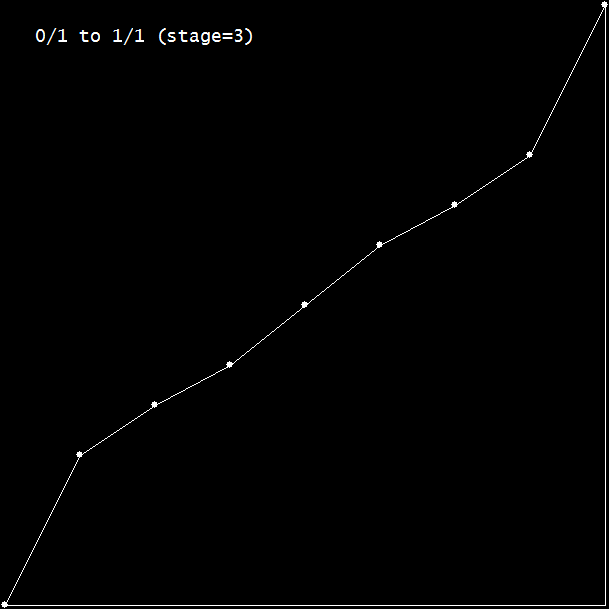

Farey fractal stage #3, representing 0/1, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 1/1

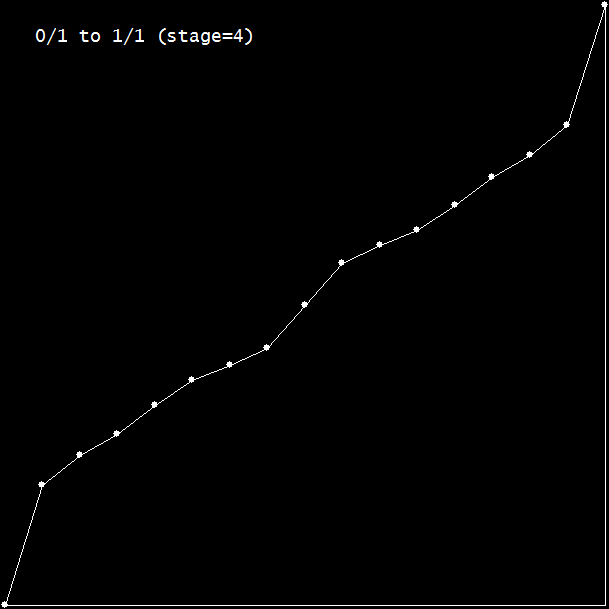

Farey fractal stage #4, representing 0/1, 1/5, 1/4, 2/7, 1/3, 3/8, 2/5, 3/7, 1/2, 4/7, 3/5, 5/8, 2/3, 5/7, 3/4, 4/5, 1/1

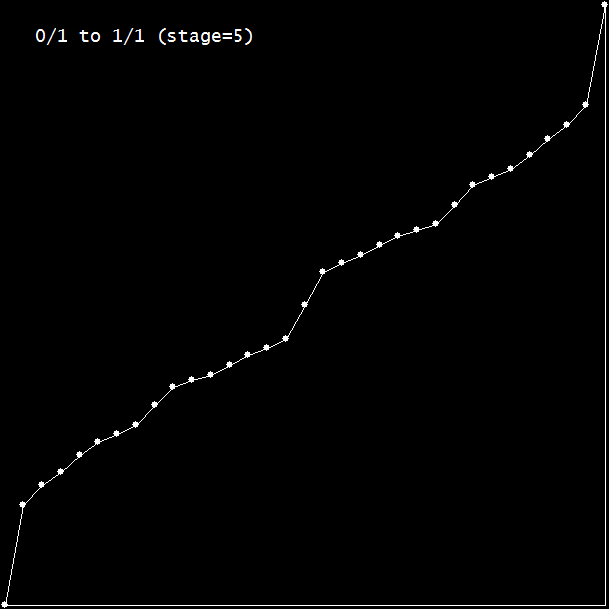

Farey fractal stage #5

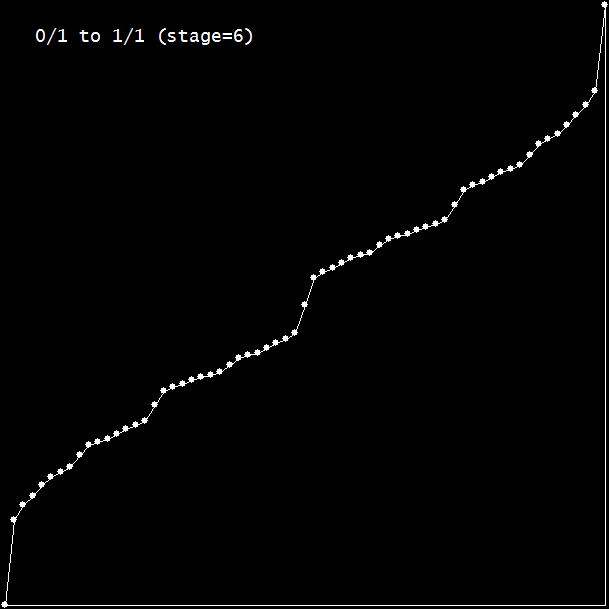

Farey fractal stage #6
Farey fractal stage #7

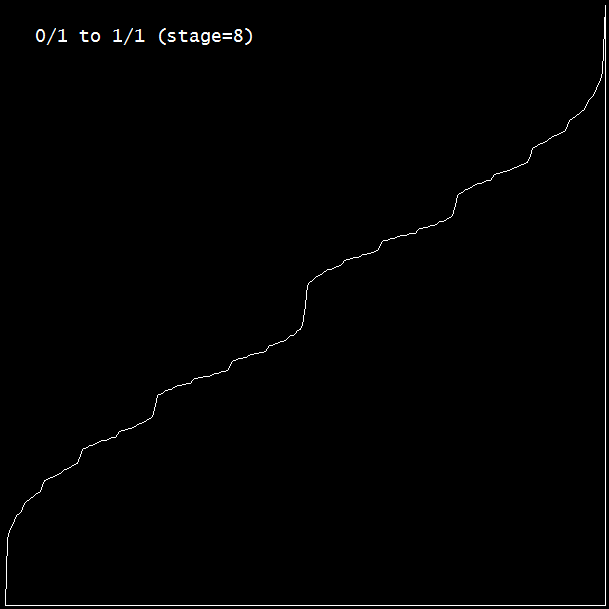

Farey fractal stage #8
Farey fractal stage #9
Farey fractal stage #10
Farey fractal (animated)
That looks like the slope of a hill to me, so you could call it a Farey fract-hill. But Farey fract-hills or Farey fractals aren’t confined to the unit interval, 0/1 to 1/1. Here are Farey fractals for the intervals 0/1 to n/1, n = 1..10:
Farey fractal for interval 0/1 to 1/1

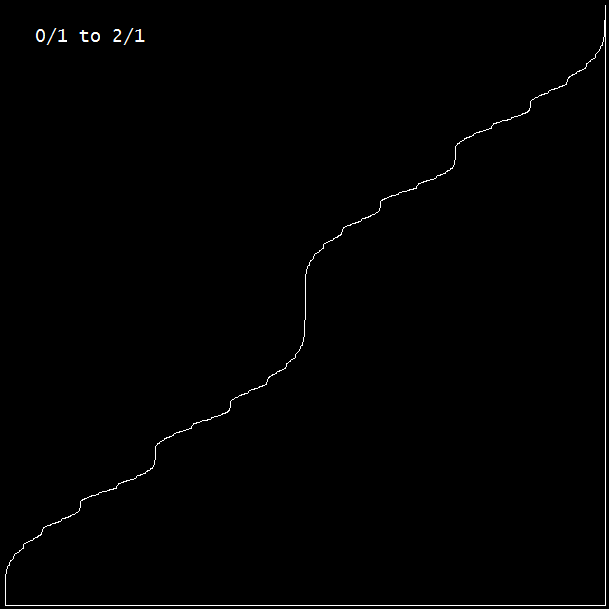

Farey fractal for interval 0/1 to 2/1, beginning 0/1, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 1/1, 5/4, 4/3, 7/5, 3/2, 8/5, 5/3, 7/4, 2/1
Farey fractal for interval 0/1 to 3/1, beginning 0/1, 1/3, 1/2, 2/3, 1/1, 5/4, 4/3, 7/5, 3/2, 8/5, 5/3, 7/4, 2/1, 7/3, 5/2, 8/3, 3/1
Farey fractal for interval 0/1 to 4/1, beginning
0/1, 1/3, 1/2, 2/3, 1/1, 4/3, 3/2, 5/3, 2/1, 7/3, 5/2, 8/3, 3/1, 10/3, 7/2, 11/3, 4/1
Farey fractal for interval 0/1 to 5/1, beginning 0/1, 1/1, 5/4, 10/7, 5/3, 7/4, 2/1, 7/3, 5/2, 8/3, 3/1, 13/4, 10/3, 25/7, 15/4, 4/1, 5/1

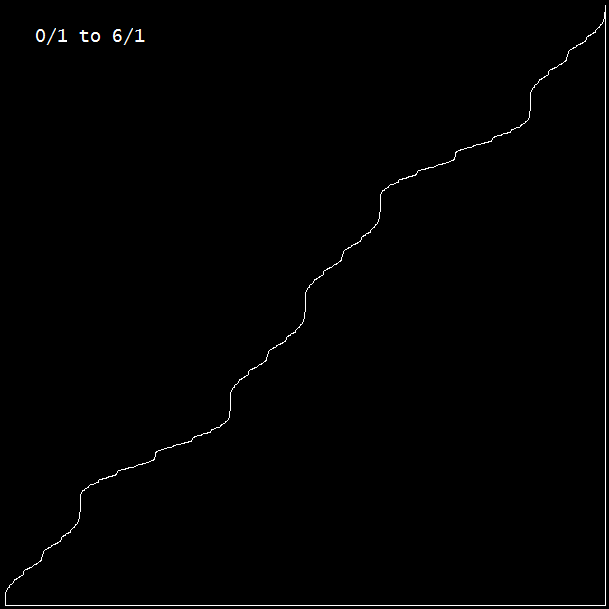

Farey fractal for interval 0/1 to 6/1, beginning 0/1, 1/2, 1/1, 4/3, 3/2, 5/3, 2/1, 5/2, 3/1, 7/2, 4/1, 13/3, 9/2, 14/3, 5/1, 11/2, 6/1

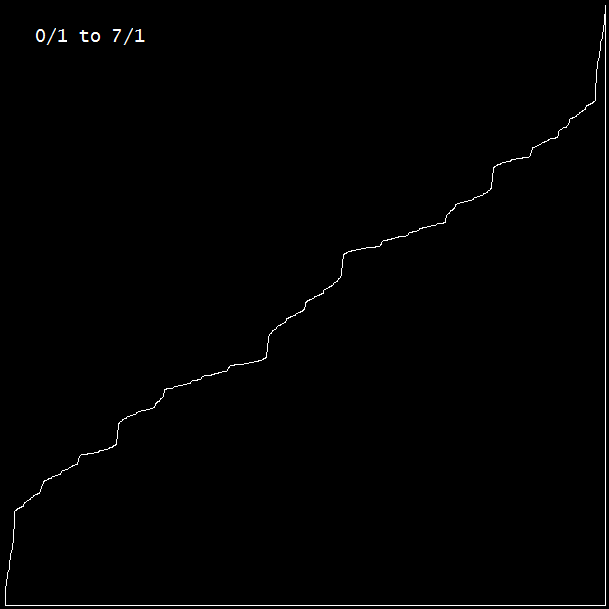

Farey fractal for interval 0/1 to 7/1, beginning 0/1, 7/5, 7/4, 2/1, 7/3, 21/8, 14/5, 3/1, 7/2, 4/1, 21/5, 35/8, 14/3, 5/1, 21/4, 28/5, 7/1

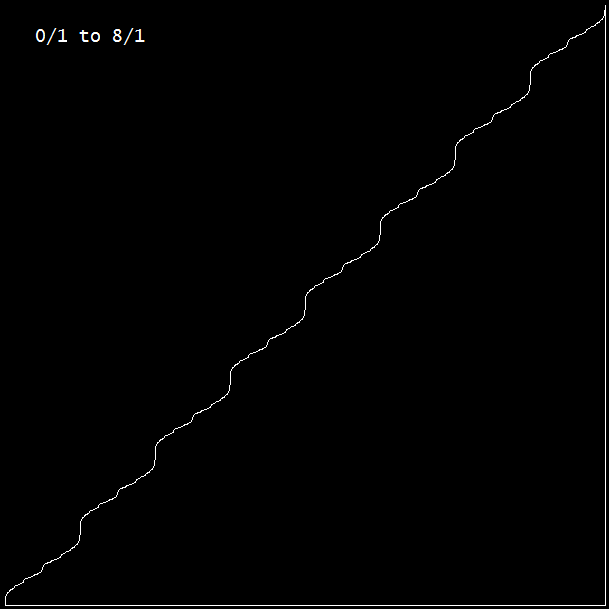

Farey fractal for interval 0/1 to 8/1, beginning 0/1, 1/2, 1/1, 3/2, 2/1, 5/2, 3/1, 7/2, 4/1, 9/2, 5/1, 11/2, 6/1, 13/2, 7/1, 15/2, 8/1
Farey fractal for interval 0/1 to 9/1, beginning 0/1, 1/1, 3/2, 2/1, 3/1, 7/2, 4/1, 13/3, 9/2, 14/3, 5/1, 11/2, 6/1, 7/1, 15/2, 8/1, 9/1

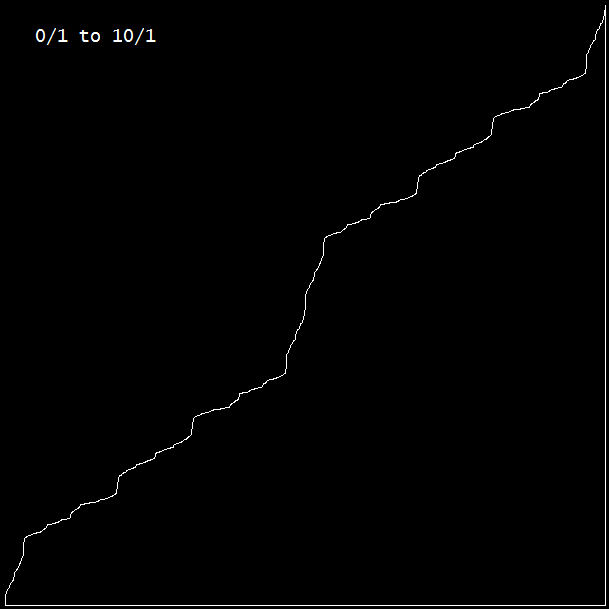

Farey fractal for interval 0/1 to 10/1, beginning 0/1, 5/4, 5/3, 2/1, 5/2, 3/1, 10/3, 15/4, 5/1, 25/4, 20/3, 7/1, 15/2, 8/1, 25/3, 35/4, 10/1
The shape of the slope is determined by the factorization of n:

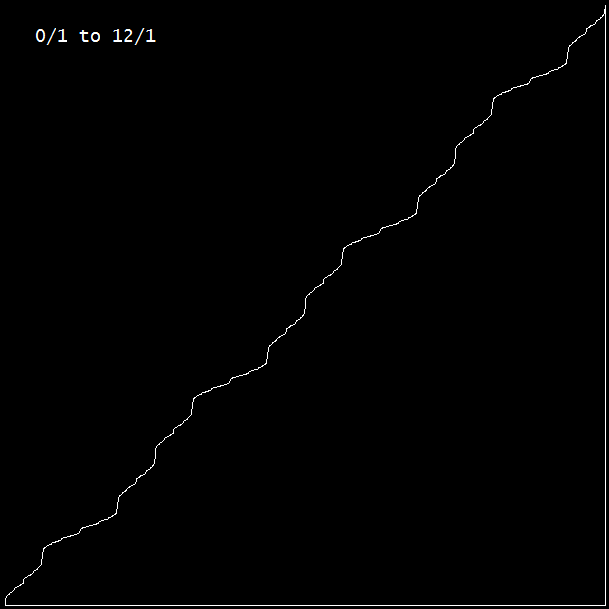

n = 12 = 2^2 * 3
n = 16 = 2^4

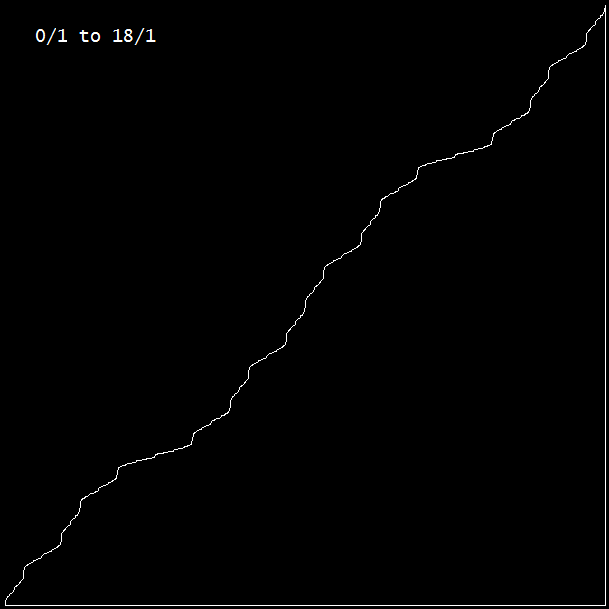

n = 18 = 2 * 3^2

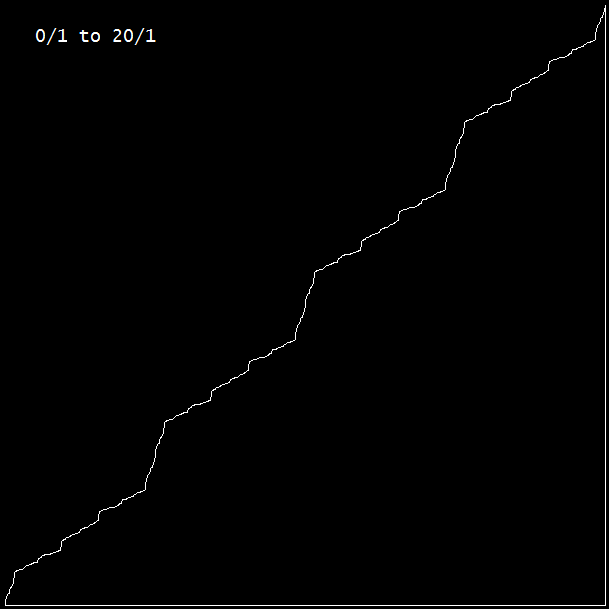

n = 20 = 2^2 * 5

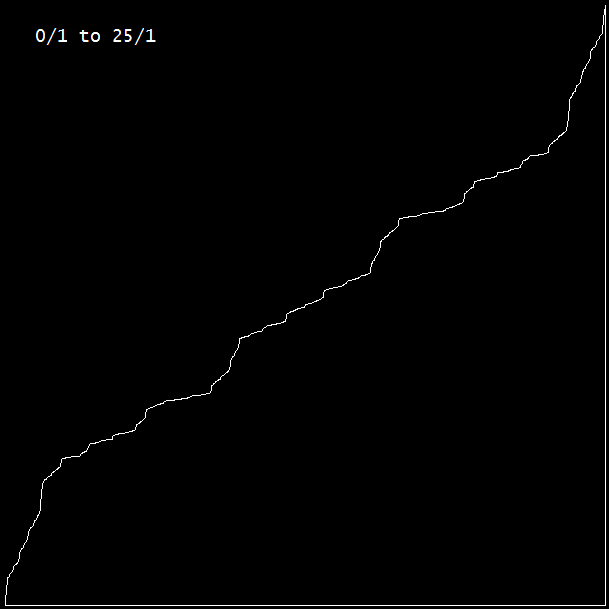

n = 25 = 5^2
n = 27 = 3^3
n = 32 = 2^5
n = 33 = 3 * 11

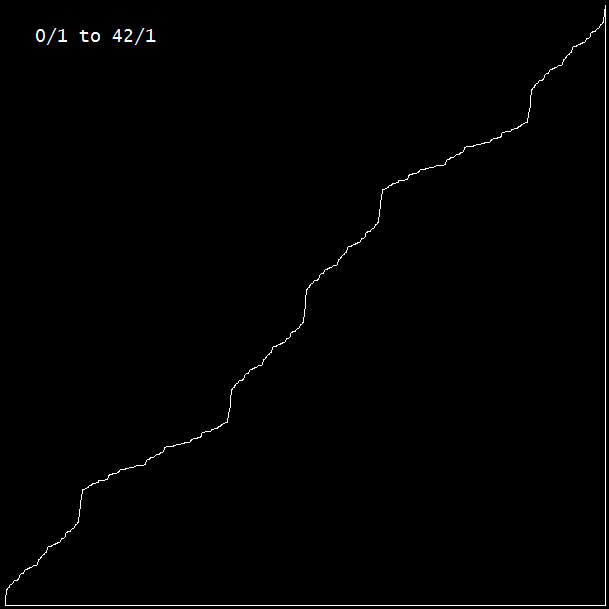

n = 42 = 2 * 3 * 7
n = 64 = 2^6

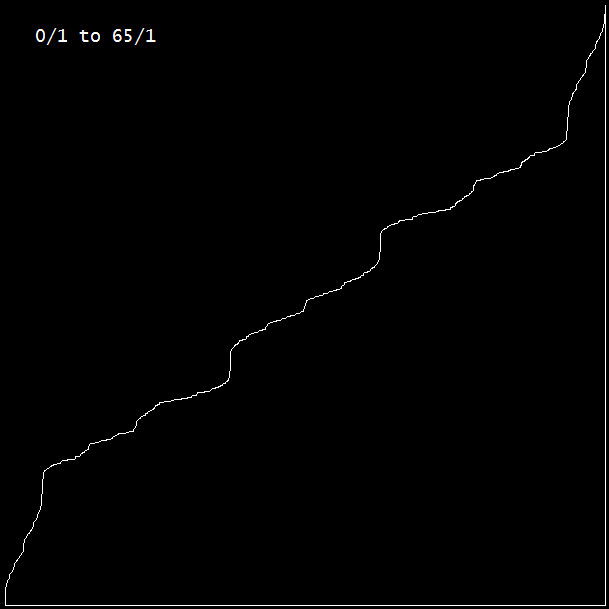

n = 65 = 5 * 13

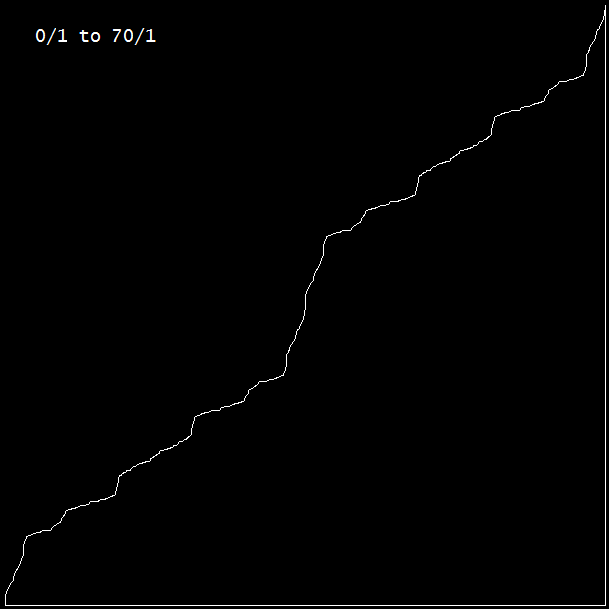

n = 70 = 2 * 5 * 7

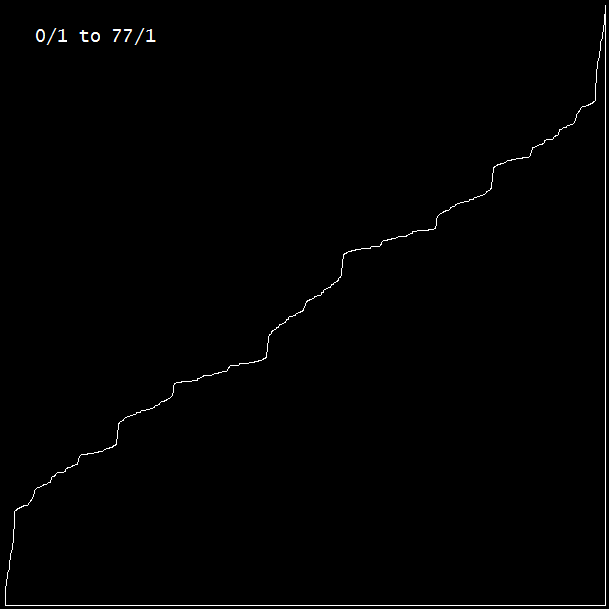

n = 77 = 7 * 11

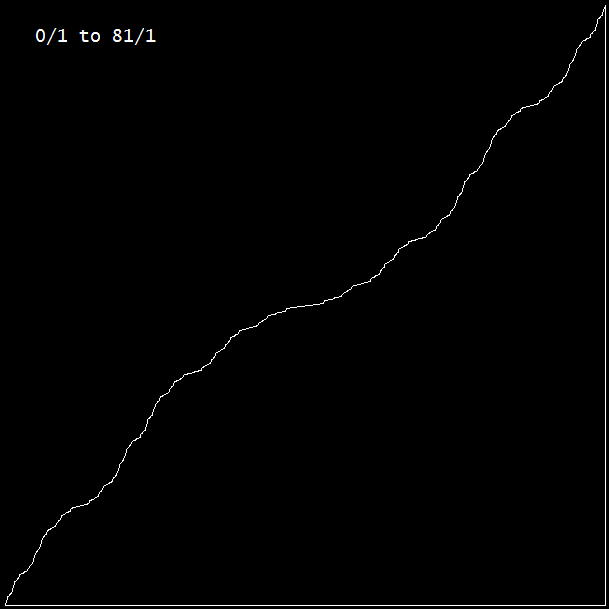

n = 81 = 3^4
n = 96 = 2^5 * 3
n = 99 = 3^2 * 11
n = 100 = 2^2 * 5^2

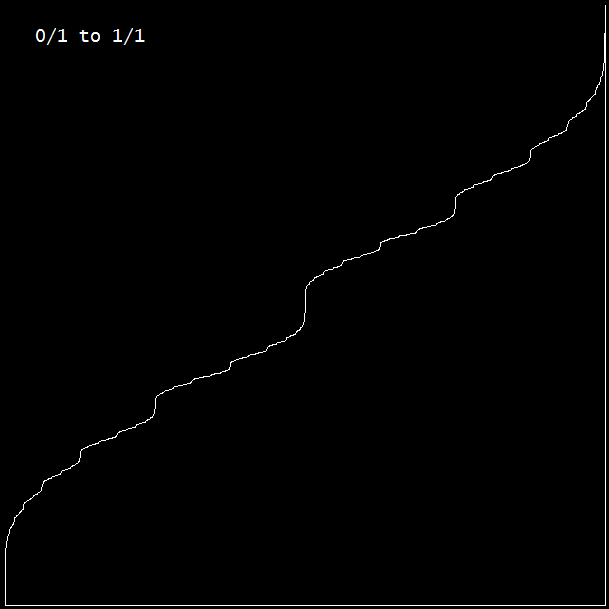

Farey fractal-hills, n = various
• Als Heifetz das Werk dann durchspielt, scheitert er mehrmals an einer extrem schwierigen Passage. Der unfehlbare Heifetz soll zu Schönberg sagen: Dafür müsste ich mir sechs Finger wachsen lassen. Schönberg erwidert angeblich: Na ich kann warten.
• When Heifetz then played through the work, he made several mistakes in a very difficult passage. The impeccable Heifetz said to Schoenberg: “I’d need to grow six fingers for that!” Schoenberg allegedly replied: “Well, I can wait!”
As I’ve shown pre-previously on Overlord-in-terms-of-issues-around-the-Über-Feral, you can create interesting fractals by placing restrictions on a point jumping inside a fractal towards a randomly chosen vertex. For example, the point can be banned from jumping towards the same vertex twice in a row, and so on.

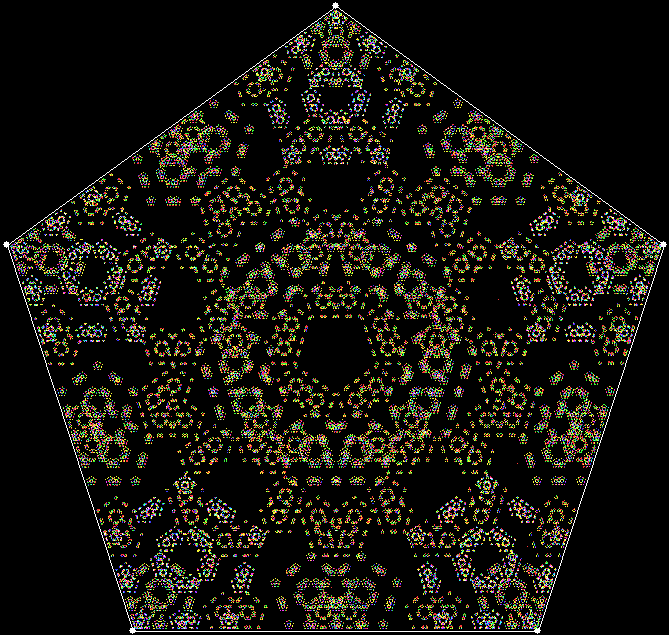

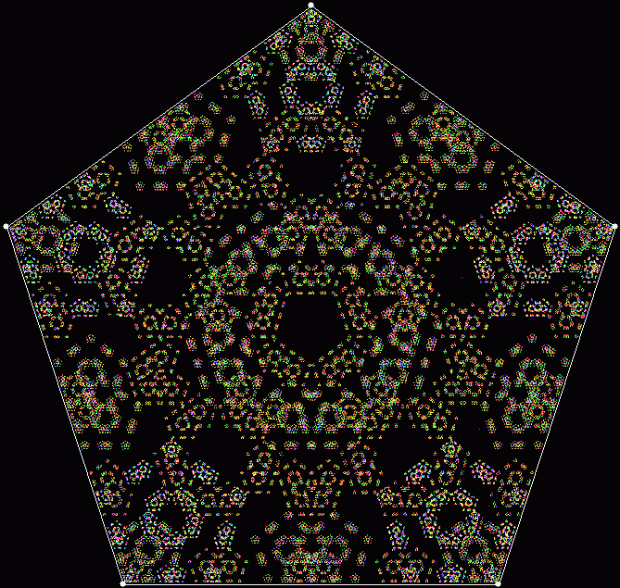

But you can use other restrictions. For example, suppose that the point can jump only once or twice towards any vertex, that is, (j = 1,2). It can then jump towards the same vertex again, but not the same number of times as it previously jumped. So if it jumps once, it has to jump twice next time; and vice versa. If you use this rule on a pentagon, this fractal appears:

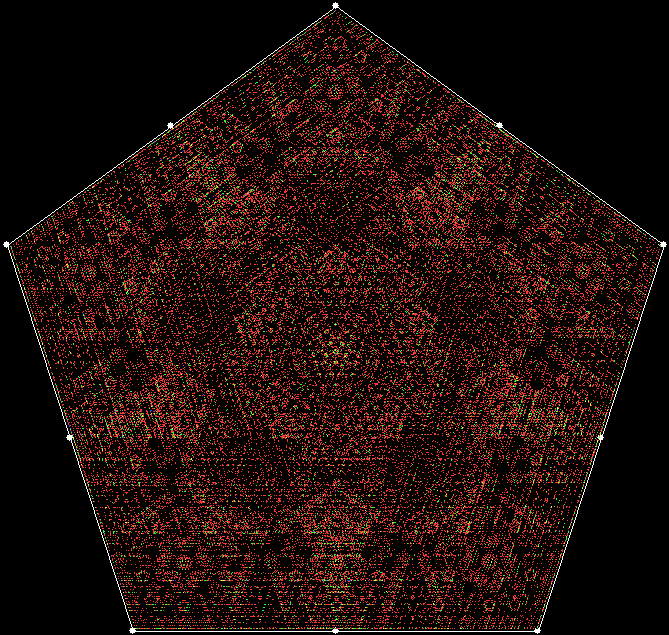

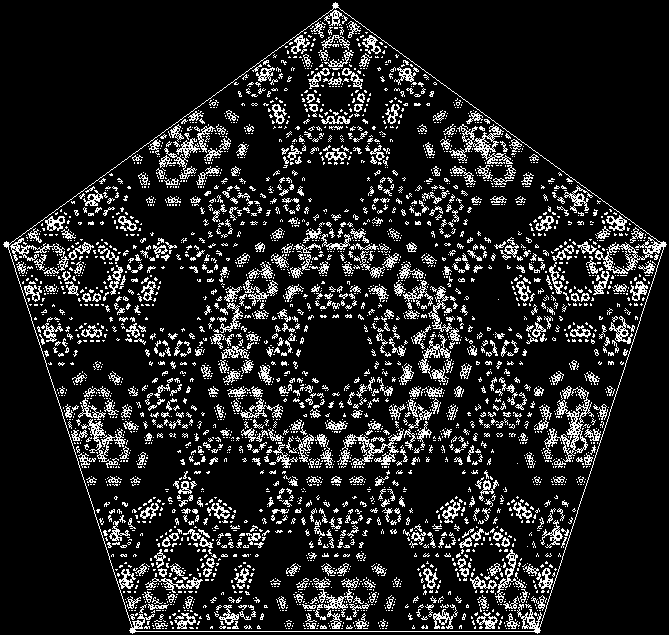

v = 5, j = 1,2 (black-and-white)

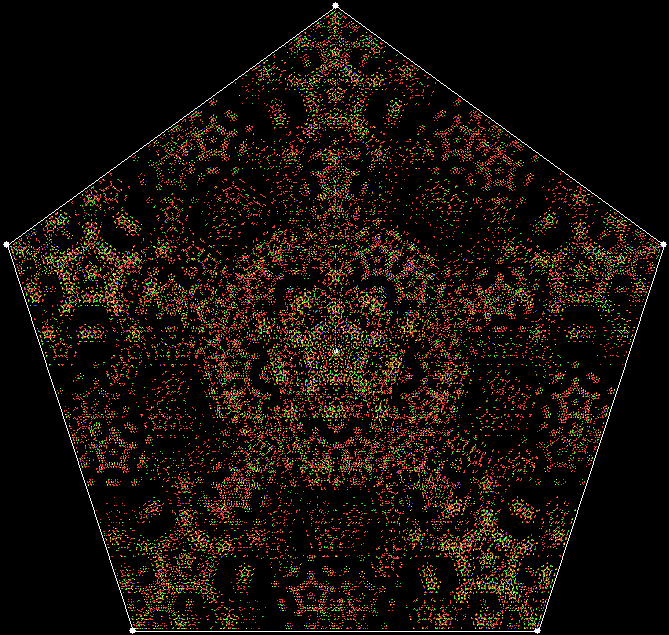

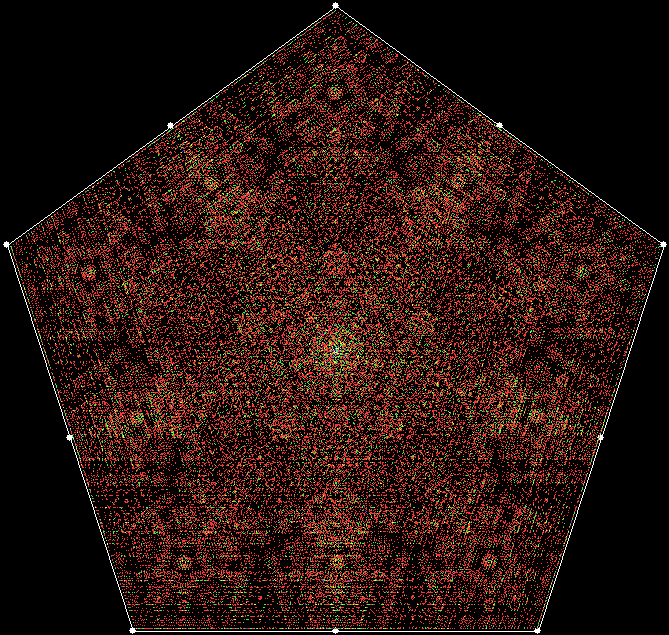

v = 5, j = 1,2 (colour)
If the point can also jump towards the centre of the pentagon, this fractal appears:

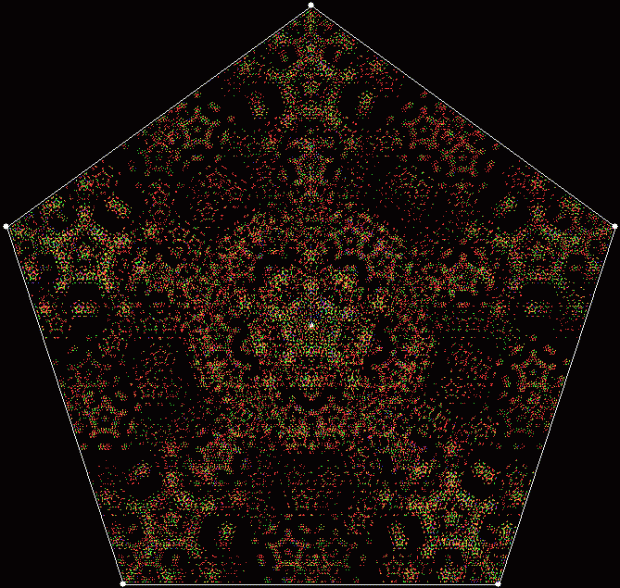

v = 5, j = 1,2 (with centre)
And if the point can also jump towards the midpoints of the sides:

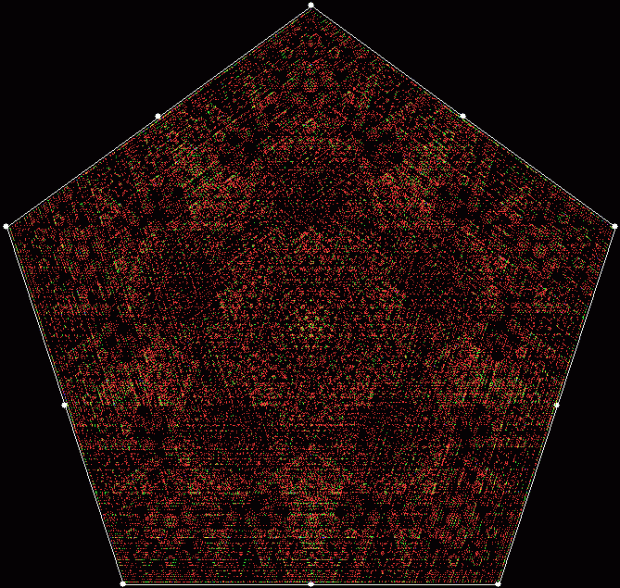

v = 5, j = 1,2 (with midpoints)

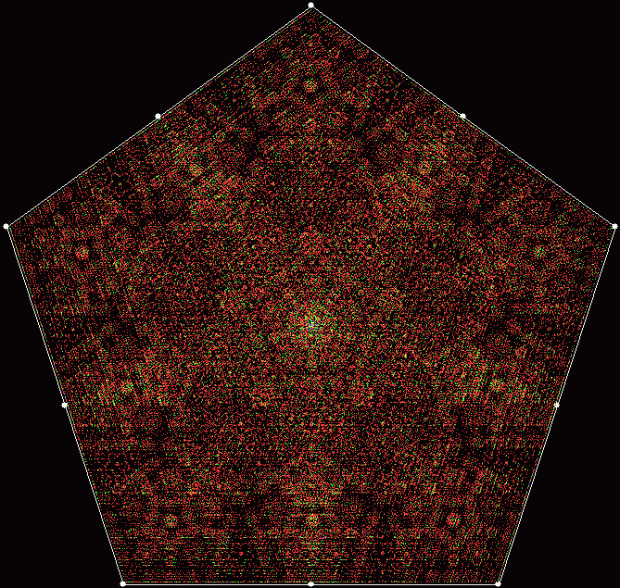

v = 5, j = 1,2 (with midpoints and centre)
And here the point can jump 1, 2 or 3 times, but not once in a row, twice in a row or thrice in a row:

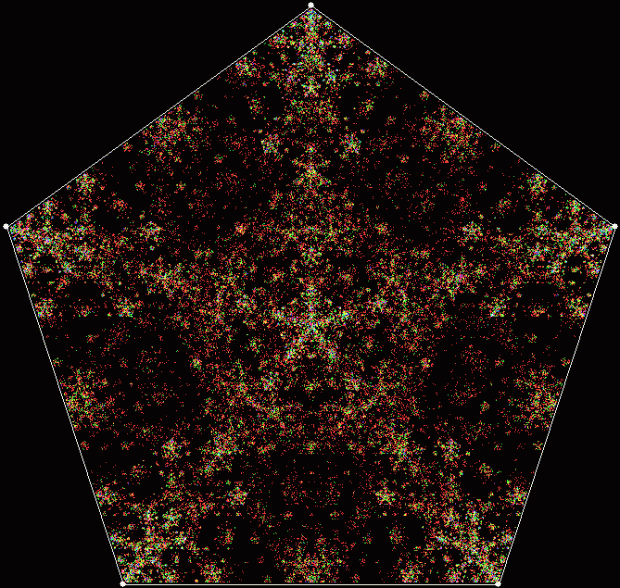

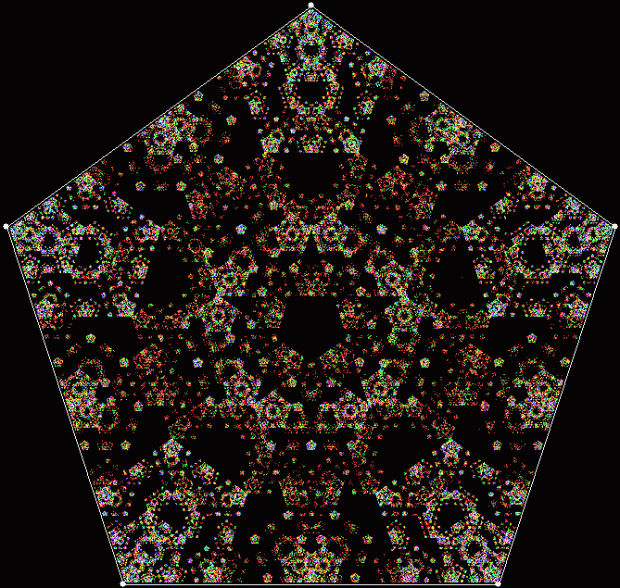

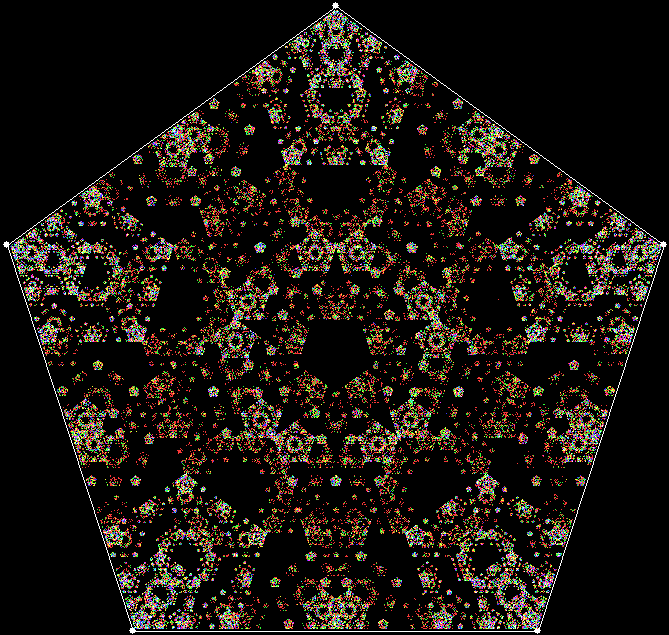

v = 5, j = 1,2,3

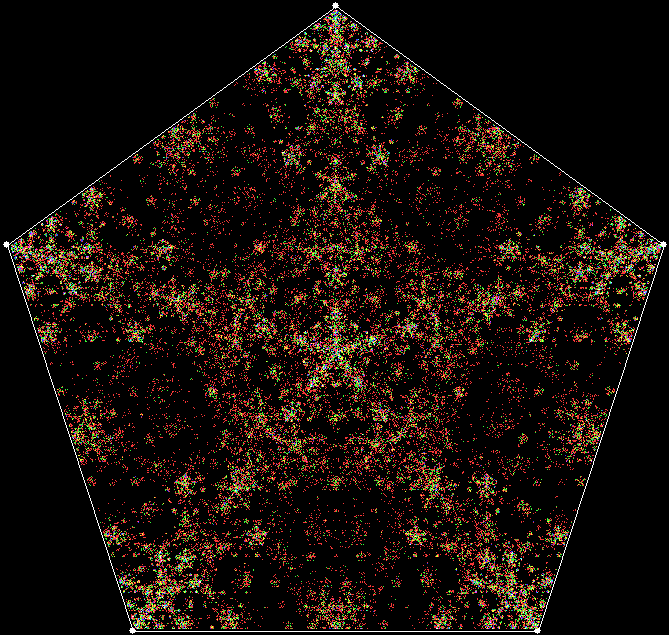

v = 5, j = 1,2,3 (with centre)
Here the point remembers its previous two moves, rather than just its previous move:

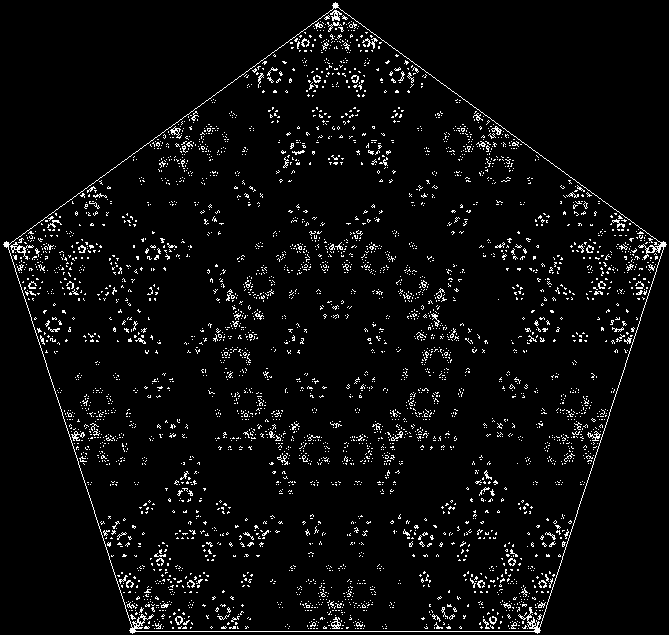

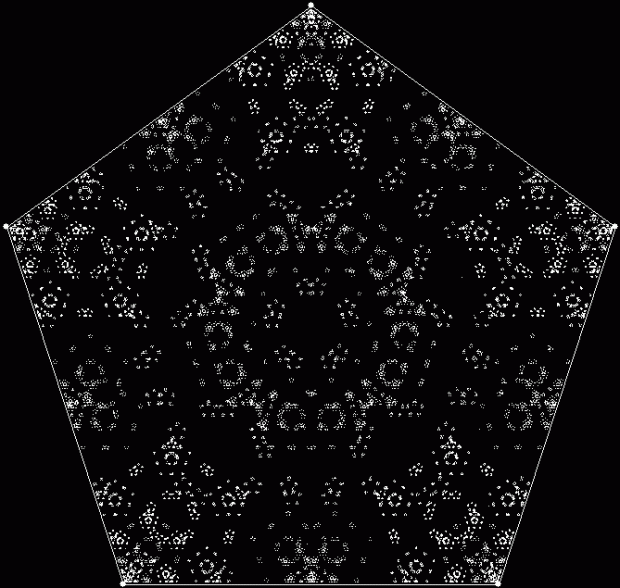

v = 5, j = 1,2,3, hist = 2 (black-and-white)

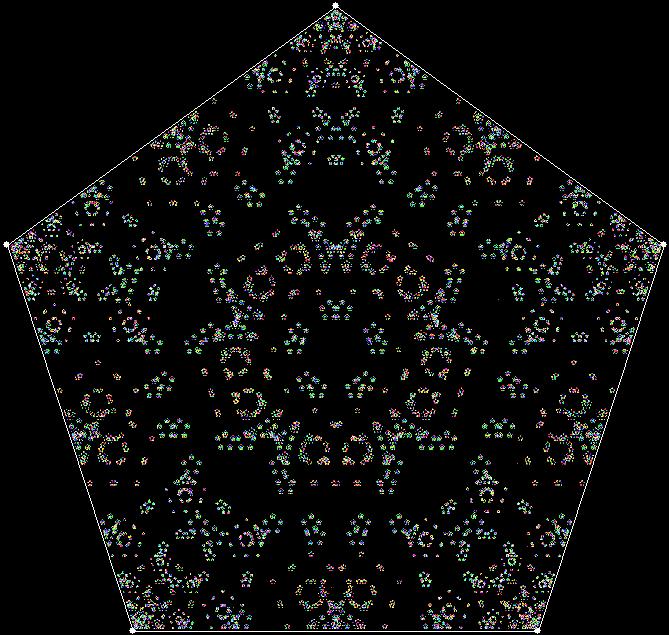

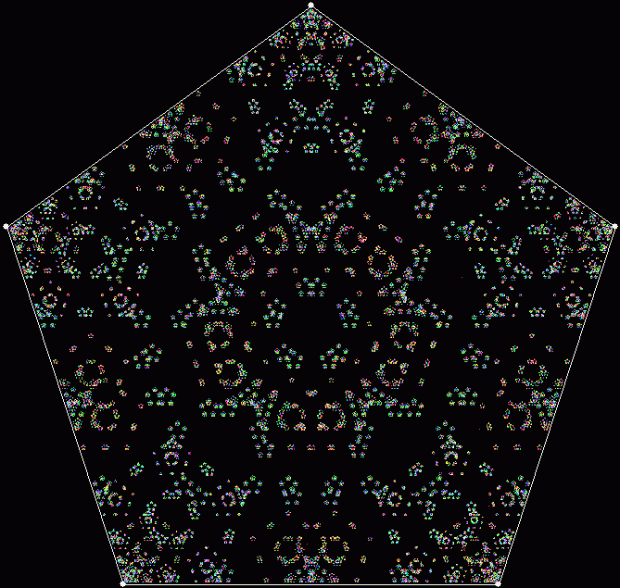

v = 5, j = 1,2,3, hist = 2

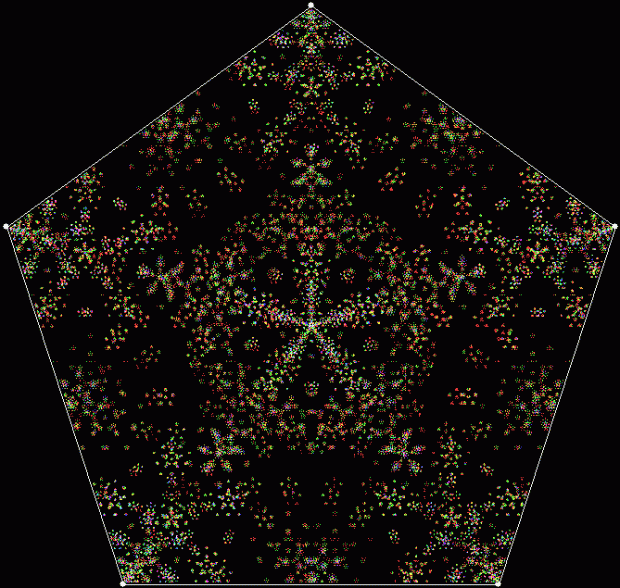

v = 5, j = 1,2,3, hist = 2 (with center)

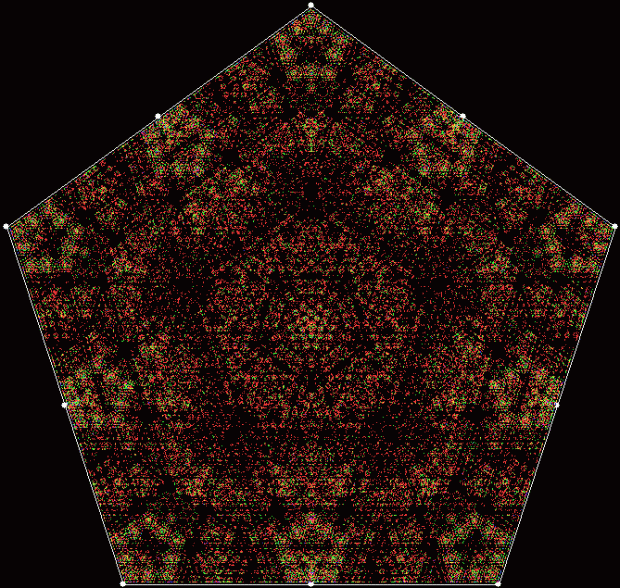

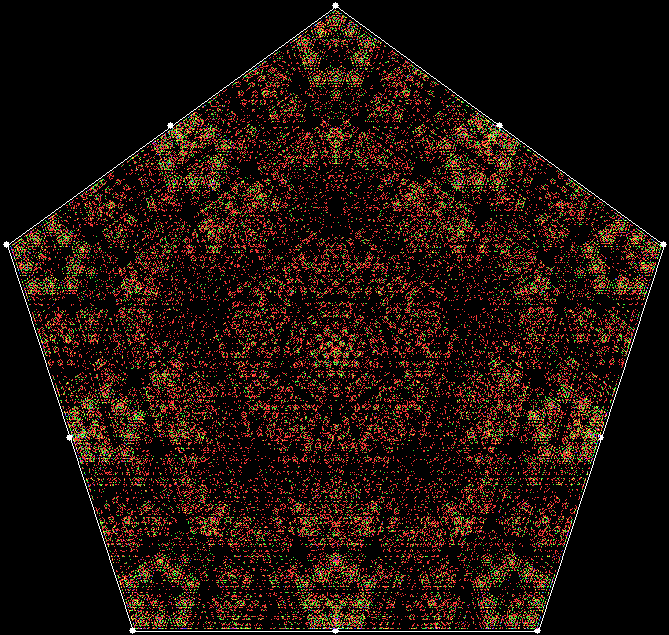

v = 5, j = 1,2,3, hist = 2 (with midpoints)

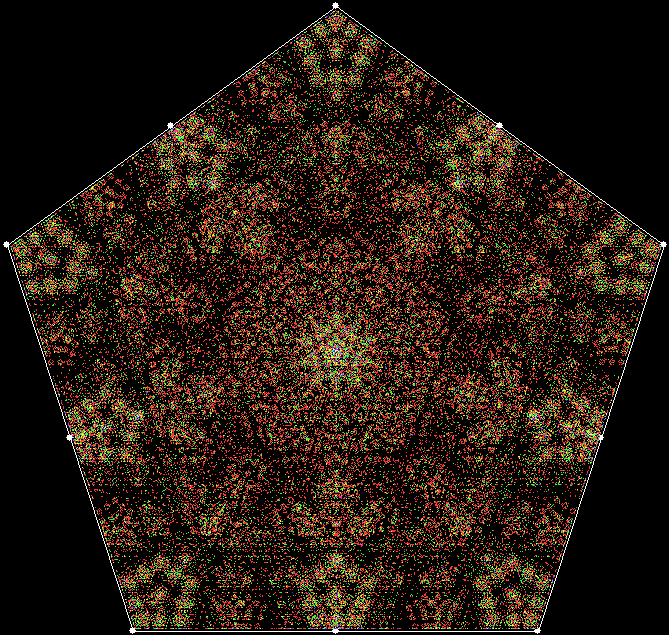

v = 5, j = 1,2,3, hist = 2 (with midpoints and centre)
And here are hexagons using the same rules:

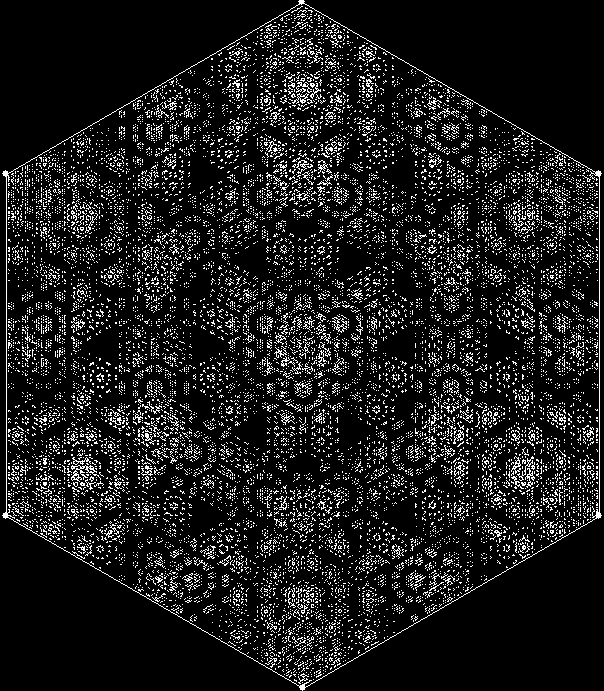

v = 6, j = 1,2 (black-and-white)

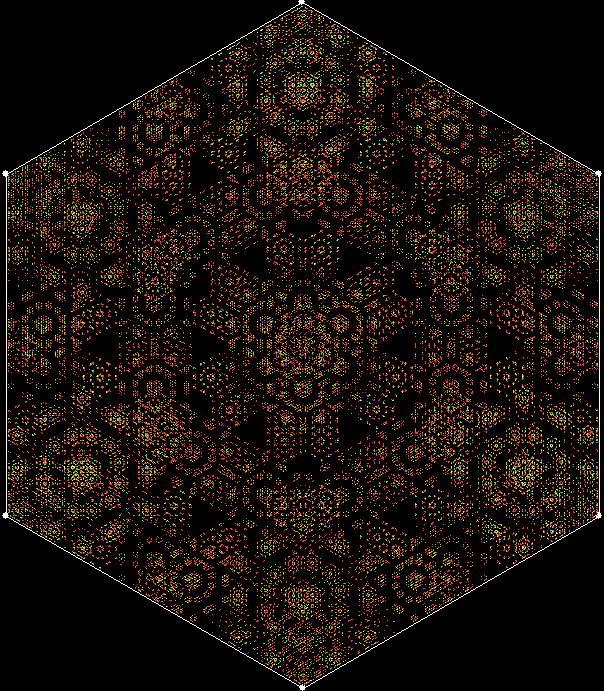

v = 6, j = 1,2

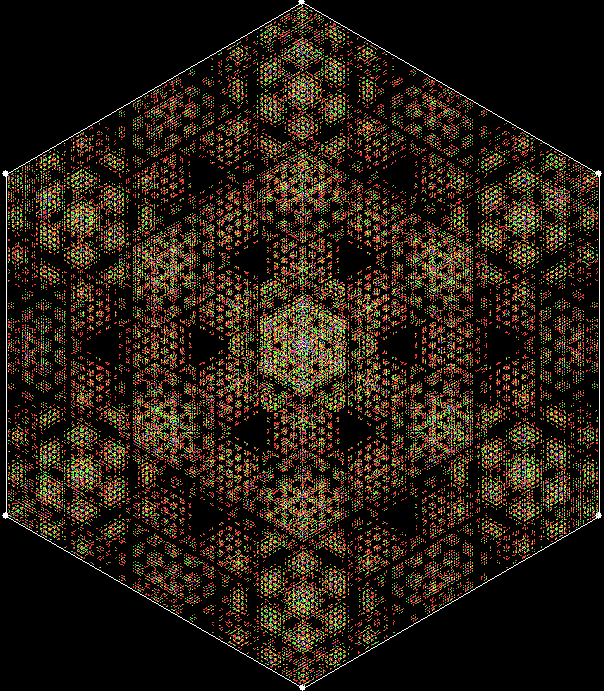

v = 6, j = 1,2 (with centre)
And octagons:

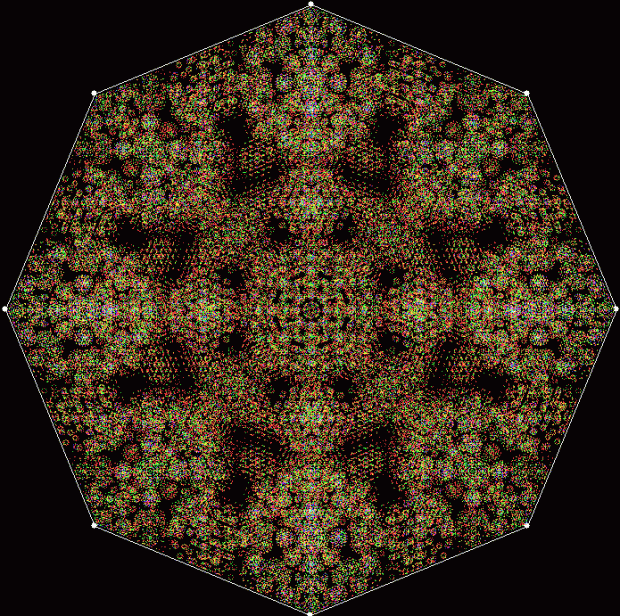

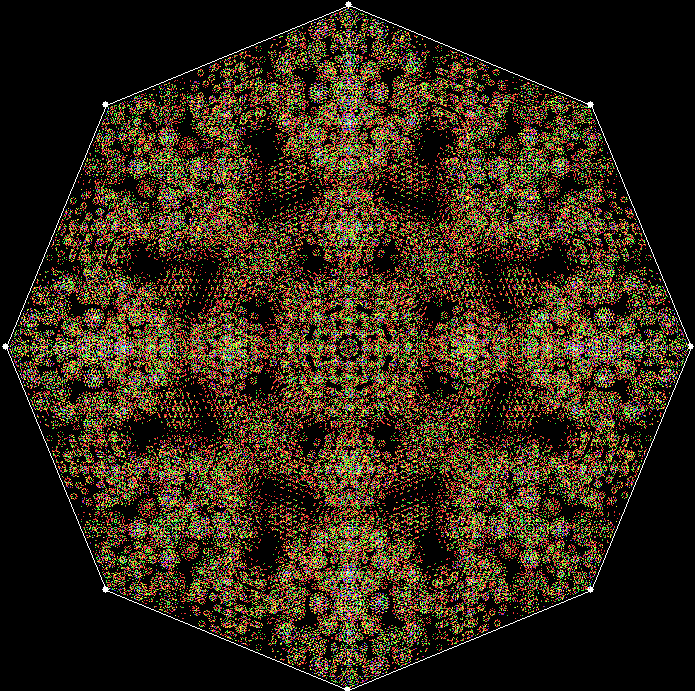

v = 8, j = 1,2

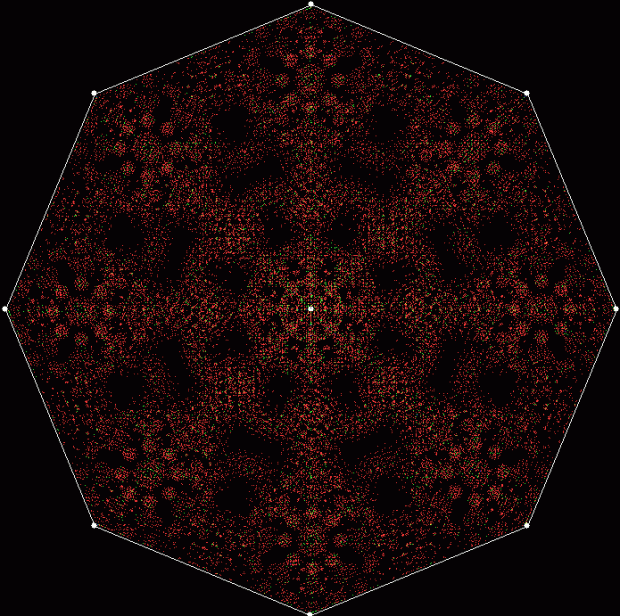

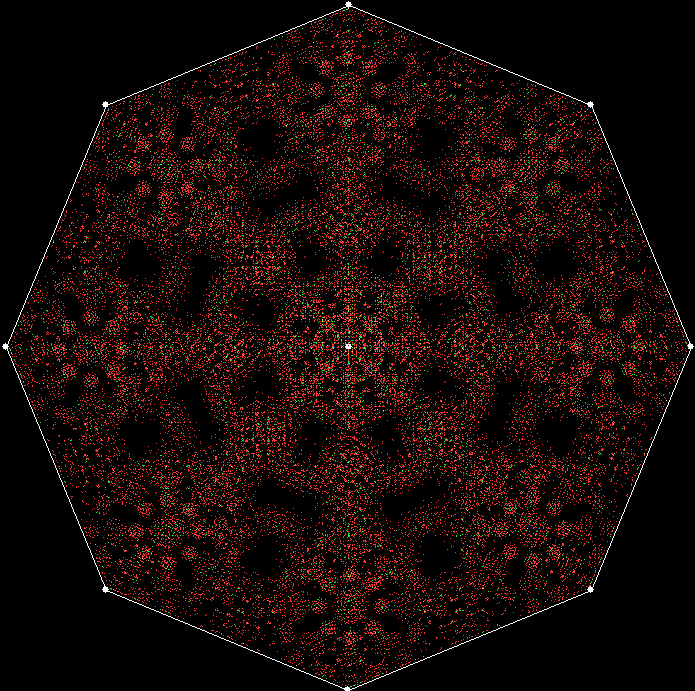

v = 8, j = 1,2 (with centre)

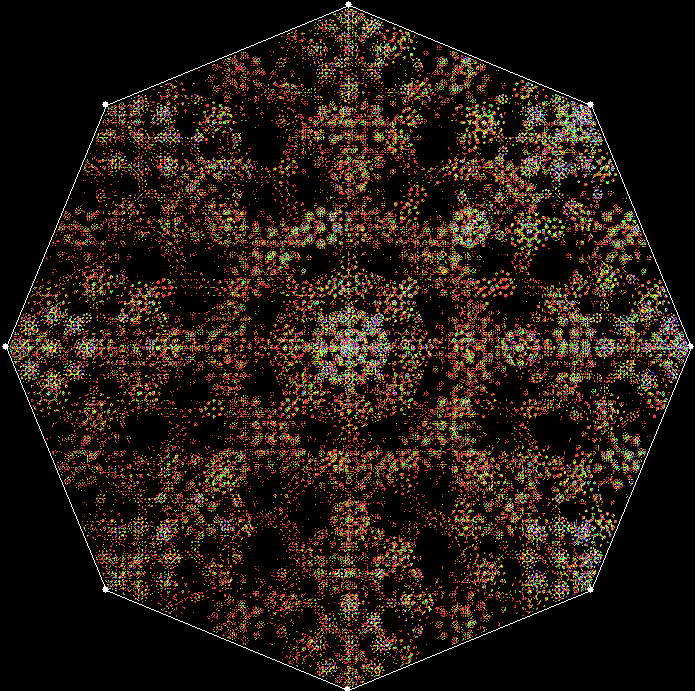

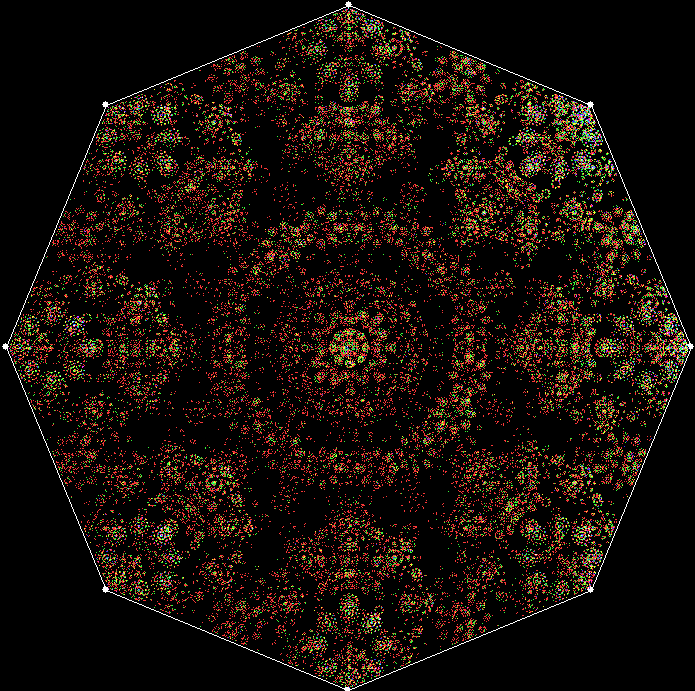

v = 8, j = 1,2,3, hist = 2
v = 8, j = 1,2,3, hist = 2

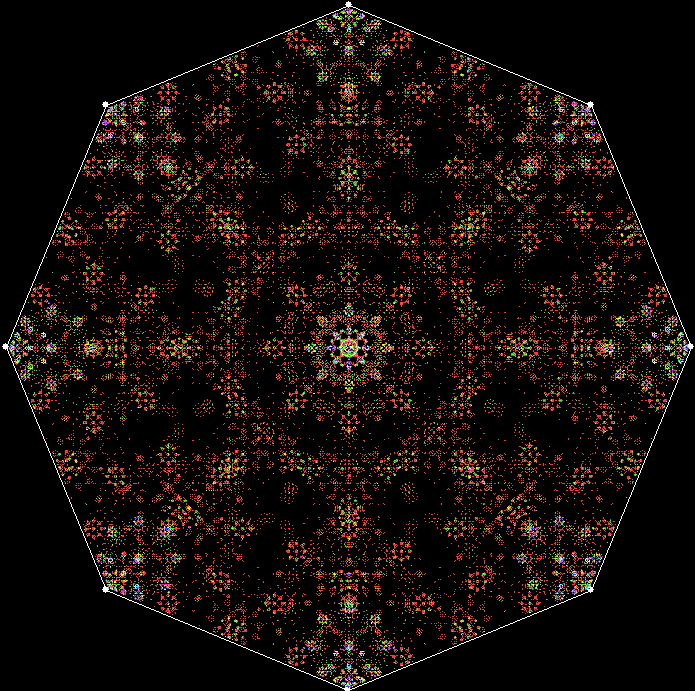

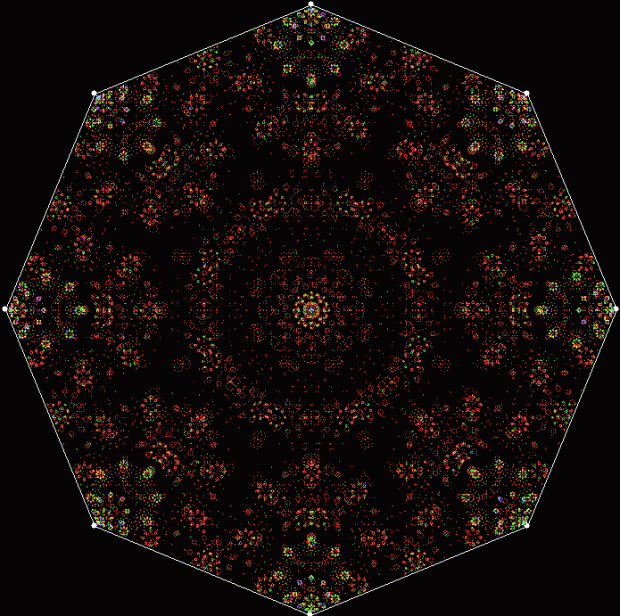

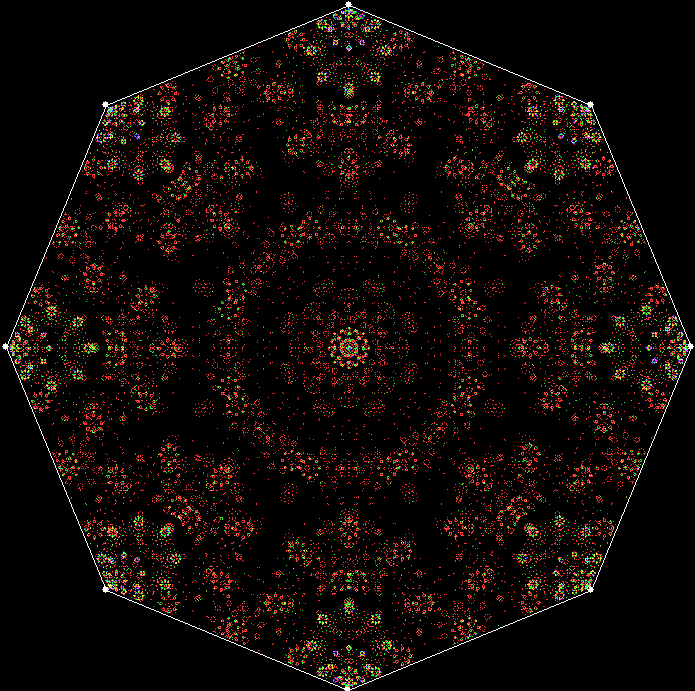

v = 8, j = 1,2,3,4 hist = 3

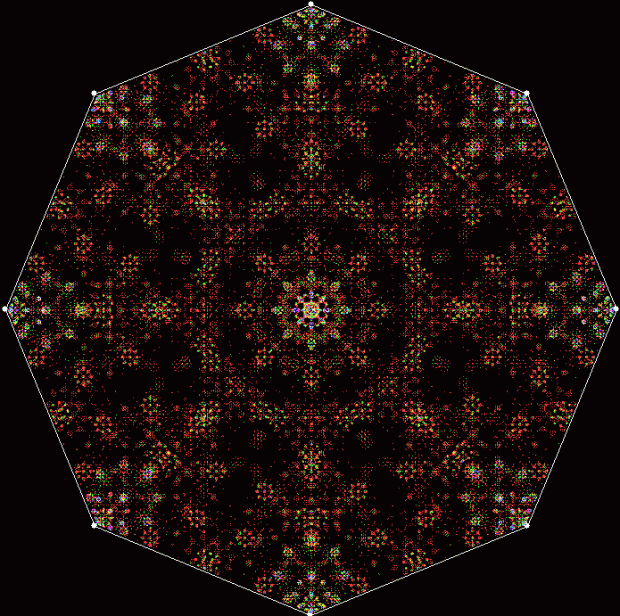

v = 8, j = 1,2,3,4 hist = 3 (with center)
